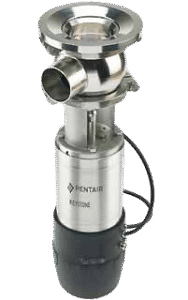

SÜDMO Single Seat Tank Bottom Valves F273J+
Südmo hygienic Single Seat Tank Bottom Valves F273J+ are designed for precise control of process or CIP fluids in and out of tanks. Easily integrated with PLC systems via the Easy mind control unit for smart monitoring and control.
The Single Seat Tank Bottom Valves are operated via compressed air using a linear pneumatic actuator or manual operator. The valve’s default (at-rest) position normally open, or normally closed, determined by the actuator type
(Spring Extend or Spring Retract) and plug configuration selected at the time of order. This mode can be easily reversed on-site by inverting the actuator assembly. Designed with minimal moving parts, these valves ensure dependable performance and reliable switching between open and closed positions.
Features:
• Compact, lightweight, and built with heavy-duty bolted cast clamps.
• High-quality 316L stainless steel bar: heavy-walled, semi-bright finish.
• Multiple sealing options plus a metal plug stop to protect seat seals.
• Wide range of port configurations; resilient seats ensure tight shutoff.
• Free-draining, smooth ball-shaped body minimizes turbulence, pooling, and air pockets.
• Smooth internals for easy cleaning, maintenance-friendly, with a reversible actuator.
• Clamp body allows 360° port orientation; butt-weld end connection.
Benefits:
• Free-draining design eliminates puddling and air pockets.
• Smooth, ball-shaped bodies reduce turbulence and improve flow.
• Smooth internal surfaces make cleaning fast and easy.
• Maintenance-friendly construction for quick service.
Options:
• Mirror-polished internal surfaces for easy cleaning
• Clamp or threaded end connections
• Optional manual operation
• 3-position actuator for flexible control
• Booster actuator for faster response
• Control top or feedback unit for automation
• Quick-release clamps for easy maintenance
Technical Data
Working temperature: -5 to +100°C (-5 to 120°C for static condition)
Sterilizing temperature: Up to 140°C for 30min (Steam for static condition)
Maximum pressure, valve body: 10bar fluid pressure
Maximum pressure, valve seat: Discuss further with OCS representative
Minimum pressure: Full vacuum
Operating air pressure: 4 to 8bar max
Air connections: R1/8” (BSP)
Surface finish: Internal < 0.8 Ra,
External hairline / buffed
Length tolerance between ends: ±0.5mm ~ ±1.0mm
Parallelism or squareness of ends: ±0.5° or less
